Build an email in the terminal.

What you get

dd_emailforge is a Ratatui TUI. You edit a typed template.json. The app emits strict MJML and compiles HTML with official MJML 5 (mjml ^5.4.0).

• JSON is the source of truth. One folder per template.
• Brand tokens live on the template and emit as mj-attributes.
• Preview is a loopback wrapper (600px + 320px). Exported HTML has none of that chrome.

template.json  →  template.mjml  →  template.html
                      │
                      └─ mjml -w → .preview/  (TUI p / CLI preview)

Prerequisites

• curl (and tar) — for the one-line install, which downloads a prebuilt package for your OS/arch.
• Node 20+ — MJML 5’s compiler. Needed to preview or export HTML.
• Optional: a global mjml on your PATH. If you have it, skip npm install after init.
• Optional: Rust / cargo — only if you install from a clone (./install.sh then calls cargo build --release) or if no GitHub Release package exists for your machine.

Install

Download the package that matches this machine (Linux or macOS, x86_64 or aarch64):

curl -fsSL https://raw.githubusercontent.com/ldnddev/dd_emailforge/main/install.sh | bash

That installs $HOME/.local/bin/dd_emailforge, writes the default theme to ~/.config/ldnddev/dd_emailforge_theme.yml (only if none exists), and creates ~/.config/ldnddev/dd_emailforge/templates/. Pin a release with VERSION=v0.9.3.

From a clone of this repo (builds with cargo):

./install.sh
./install.sh --from-release   # GitHub package even from a clone

curl -fsSL https://raw.githubusercontent.com/ldnddev/dd_emailforge/main/install.sh | bash -s -- uninstall
./install.sh uninstall    # same, from a clone
./install.sh --help

If ~/.local/bin is not on your PATH, add it:

export PATH="$HOME/.local/bin:$PATH"

Create a template

dd_emailforge init ./my-email --from welcome
# skip npm install when `mjml` is already on PATH
cd my-email && npm install
dd_emailforge .

A directory argument means dir/template.json. init writes:

• template.json — the document
• images/.gitkeep — drop local images here
• package.json — pins mjml ^5.4.0 (does not run npm)
• .gitignore — .preview/, node_modules/, template.json.backup

--from	Intent	Footer
welcome (default)	Post-signup	address + Unsubscribe + *|UNSUB|*
newsletter	Digest	same
promo	Sale	same
transactional	Receipt / reset	address; empty unsub label and href (F3 stays clean)

Welcome ships Google Font Raleway. Starter images are https://dummyimage.com/… placeholders.

Open the TUI

Bare dd_emailforge reopens the last template, or starts empty if none is remembered. A path argument opens that folder. You’ll get an info toast until a template exists; n New and o Open work in the editor:

After init --from welcome:

Chrome

• Header — app name + a rotating tagline (3 rows, including borders).
• Structure — [HEAD], [BRAND], [BODY], then sections / columns / components. j/k move, h/l collapse/expand, Space toggles.
• Details — field summary for the selection, then a blueprint of every layout node. The selected element is highlighted. Click a region to select it in the tree.
• Footer — one adaptive key bar. Narrow terminals drop keys; they never wrap.

Below 48 columns, Details hides and you get Structure only. Tab toggles pane focus when both panes exist.

F1 is the full key + mouse list:

Edit, insert, select

FormEdit

Select a row and press Enter (or double-click). Tab between fields, cycle enums with left/right, Ctrl+S saves and rewrites template.mjml so a live preview updates immediately, Esc cancels. On image URL fields, Ctrl+P opens a picker rooted at images/ (it cannot walk above the template folder).

Insert

/ opens a fuzzy picker filtered to kinds that are legal for the current selection. Nested tags stay under their MJML parent: mj-navbar-link only under mj-navbar, accordion elements only under accordion, carousel images only under carousel. A section takes columns and groups, not leaves as direct children (a leaf splices into the last column, or wraps a column on empty BODY).

Blueprint click-to-select

The details canvas always shows the full email. Click a box (or its nested text) to select that node in the tree. Innermost hit wins. The tree expands ancestors so the row is visible.

Other tree edits: d delete (not HEAD/BRAND/BODY), y duplicate, u undo (cap 20), U / Ctrl+R redo, J/K reorder, C/V add/remove a column (equal-% widths), c/v hop columns.

Autosave rewrites template.json 2s after a change when a path is set. Manual s also writes template.json.backup.

Validate, preview, export

Action	TUI	CLI
Validate	F3	dd_emailforge validate <path>
Preview	p	dd_emailforge preview <path> [--port 8766]
Export MJML+HTML	Shift+E	dd_emailforge export <path> [--out <dir>]
Dump JSON	—	dd_emailforge show <path>

<path> is a template.json or a folder containing one, matching dd_emailforge <command> --help.

F3 / preview / export all gate on validation errors. Warnings (unused font, marketing unsub heuristic) toast or print but do not block.

• The compiler is official Node mjml only. Discovery: {root}/node_modules/.bin/mjml, then PATH. Never mrml, never npx.
• Preview rewrites relative image src to http://127.0.0.1:{port}/images/… and opens a loopback wrapper (600 + 320 iframes). CLI preview defaults to port 8766; TUI preview binds 127.0.0.1:0.
• Export writes template.mjml + template.html next to the JSON (or --out dir). Relative images need an https:// base_url on the template. Dummyimage URLs already qualify.

dd_emailforge export ./my-email
dd_emailforge export ./my-email --out ./dist
dd_emailforge preview ./my-email --port 8766

Keys

Key	Action
F1	Help
F2	Theme source + sampled tokens
F3	Validate (Enter jumps to the node/field)
n	New template
o	Open template.json or folder
p	Preview
Shift+E	Export
s	Save JSON + .backup
/	Insert picker (legal kinds only)
Enter	FormEdit
Ctrl+Q	Quit (confirm if unsaved)
j/k g/G h/l Space	Tree move / jump / fold
d y u U J/K	Delete / duplicate / undo / redo / reorder
C/V c/v	Add/remove column · prev/next column
Ctrl+P	Image picker on src fields

Theme

Lookup order (first file that exists and declares version: 1 wins):

1. ./dd_emailforge_theme.yml
2. $XDG_CONFIG_HOME/ldnddev/dd_emailforge_theme.yml if XDG_CONFIG_HOME is set
3. ~/.config/ldnddev/dd_emailforge_theme.yml
4. Built-in defaults

Schema: LDNDDEV_TUI_VISUAL_STANDARD.md. Do not invent tokens.

Updating screenshots

The PNGs under docs/images/ are not hand-drawn. They are screenshots of HTML frames dumped from the live Ratatui renderer (same App::draw path as the TUI).

From the repo root:

./docs/capture.sh

That will:

1. Run the ignored test tui::tutorial_shots::capture_tutorial_frames, which writes one HTML frame per shot using a pinned header quote and the welcome starter (or empty chrome).
2. Open each frame in headless Chromium and write the PNG.
3. Delete the temporary _frame-*.html files.

Requires cargo and a Chromium/Chrome binary on PATH (or set CHROME). Optional: EMAILFORGE_TUTORIAL_SHOTS=/some/dir to write somewhere else.

File	Scene (edit src/tui/tutorial_shots.rs to change)

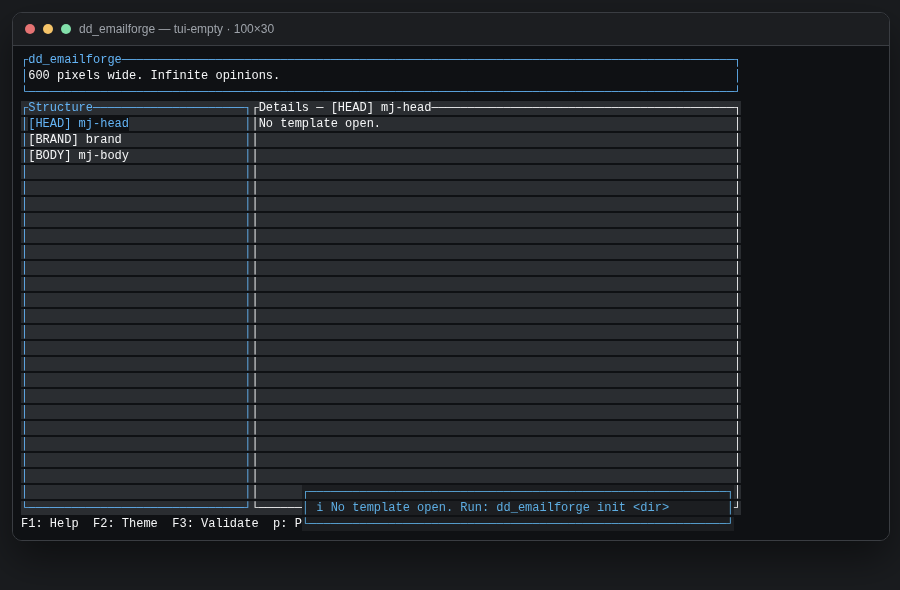

tui-empty.png	No template; info toast pointing at init

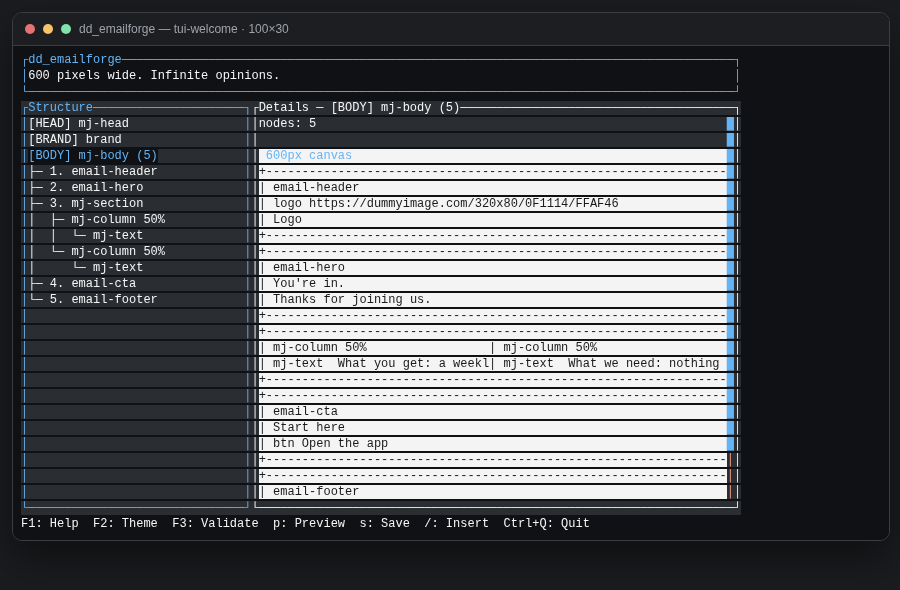

tui-welcome.png	Welcome starter, BODY selected, full blueprint

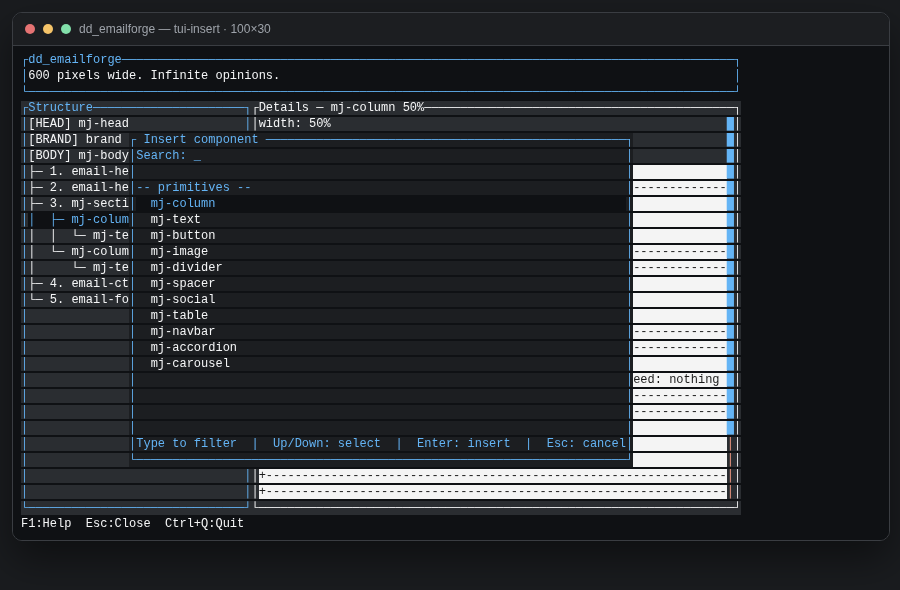

tui-insert.png	/ picker on an mj-column

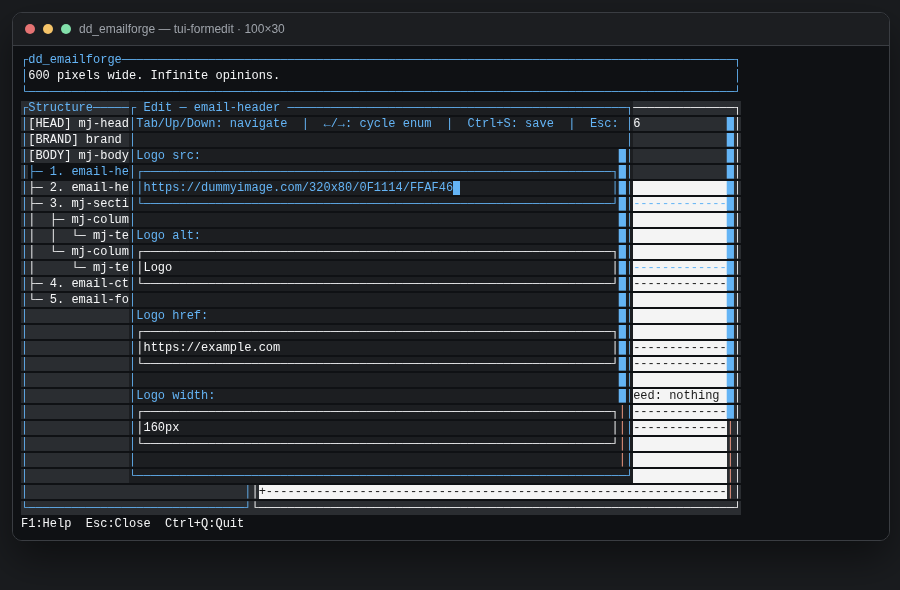

tui-formedit.png	FormEdit on email-header

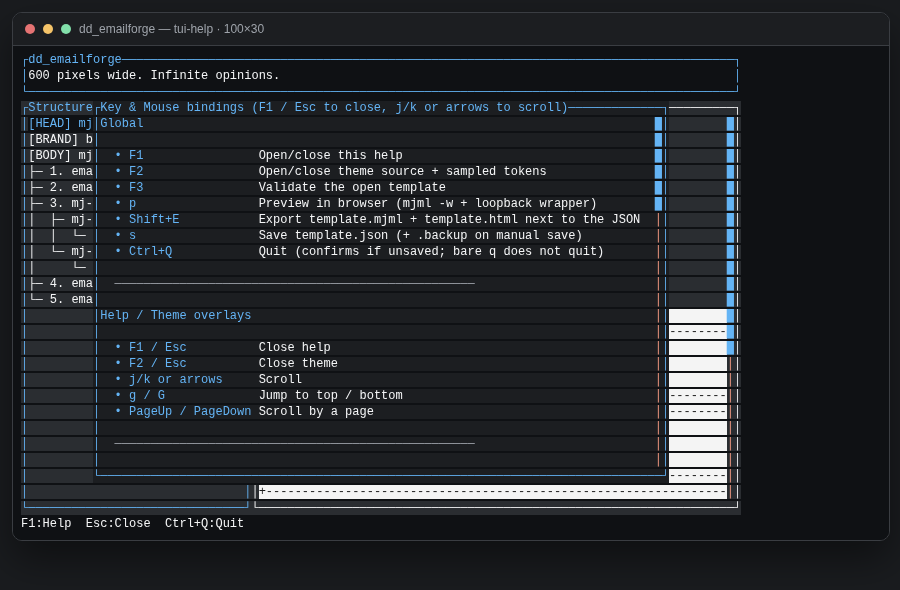

tui-help.png	F1 help overlay
tui-selected.png	mj-text selected in tree + blueprint highlight

More capture notes: docs/README.md.

More docs

• Architecture.md — crate map, pipeline, keys
• docs/SPEC.md — living conventions
• docs/DESIGN.md — locked design
• components/*.md — per-node field contracts
